BeatSaber ShockBot

 — #Python#Virtual Reality#RaspberryPi

A Python script, a RaspberryPi, a WebSocket mod and a TENS unit to take BeatSaber.

Installing the WebSocket mod

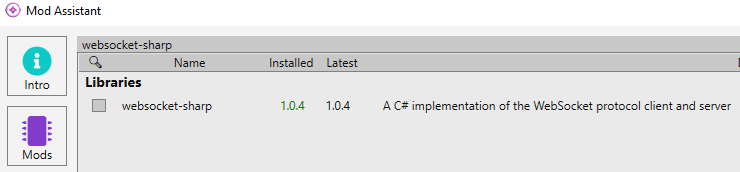

To begin you will need to install the websocket mod for BeatSaber. To do this you will need to download and install the ModAssistant. Once installed open the application on your machine and install the websocket-sharp mod. You can find more details about this mod on Github.

ModAssistant

As a final step you will want to confirm the port number the Websocket is running on to update in the BeatSaber-Shockbot script. Start by running the beatsaber game with the mod installed. Then open PowerShell and run the below command.

Get-NetUDPEndpoint -OwningProcess (get-process 'Beat Saber').id

This will provide the port number that can be added to the Python script on the RaspberryPi.

Connecting the TENS unit to the RaspberryPi

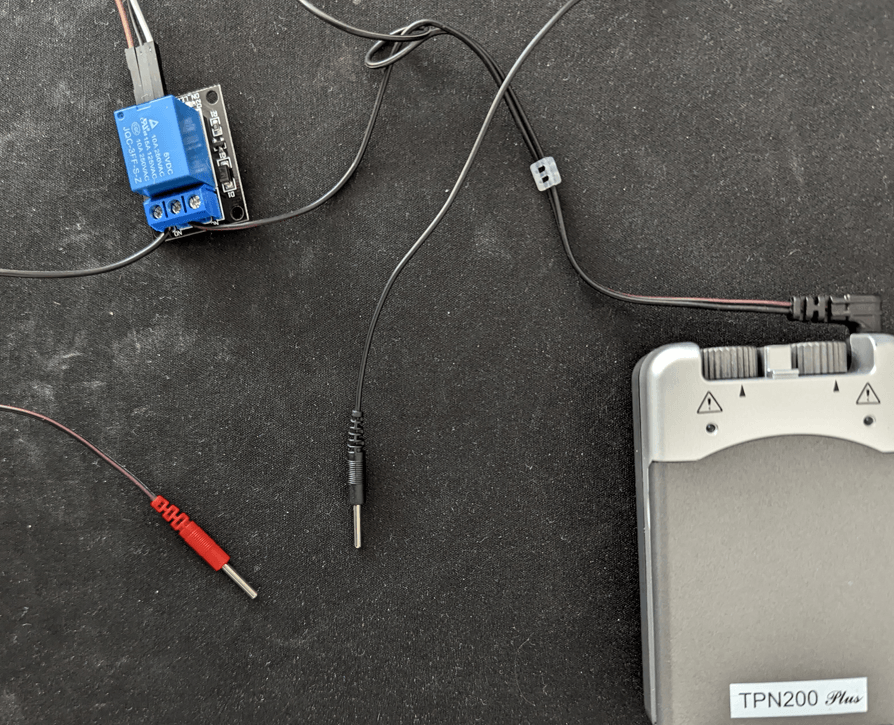

To connect the TENS unit to the RaspberryPi you will need to cut one of the cables from the TENS unit to the pads that connect to your body. Connect the pad side of the cut cable into the Normally Open terminal of a breakout relay. Connect the TENS unit side of the cut cabel into the Common terminal of the relay.

BreakoutRelay

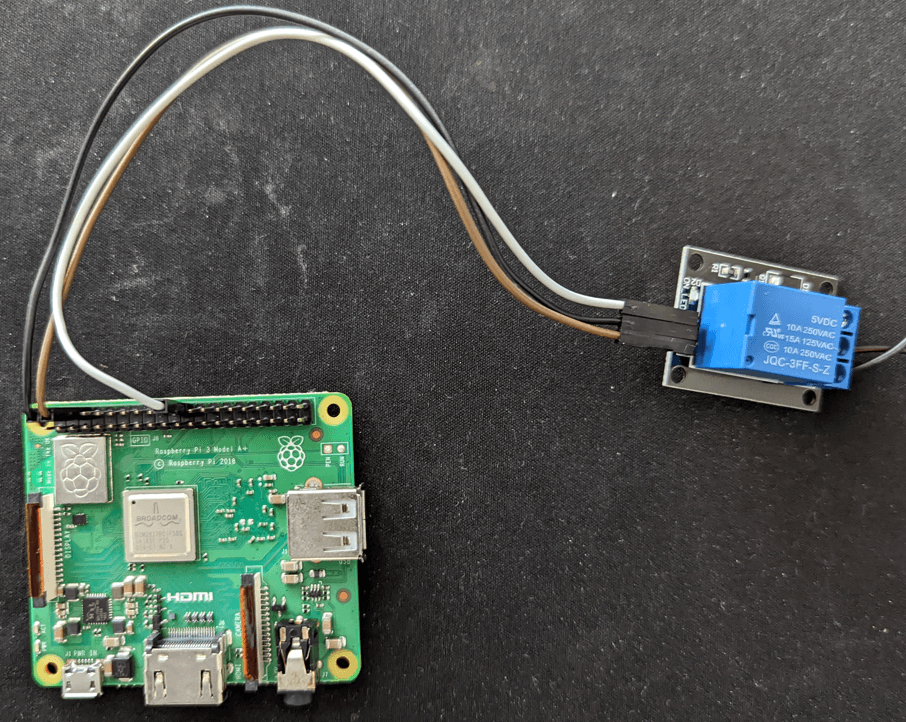

You will then need three female to female cables to connect the relay to the RaspberryPi. The Power and Ground pins will connect to power and Ground on the Pi and the Signal pin will connect to pin 22 of the Pi. Google search for the pinouts to match the model Pi you are using (You may need to adjust the pin number in the BeatSaber-ShockBot.py script).

PIGPIO.BOARD

RaspberryPi setup

You will need to start a terminal on the Pi, this can be done directly on the machine or by remoteing on via SSH. Start by updating the Pi by running the following:

sudo apt-get update
sudo apt-get upgrade

Next you will need to download the following packages needed for the script to run:

sudo apt-get install python-pip

Lets then create a directory for this project and set-up the script.

sudo mkdir shockbot
cd shockbot
nano BeatSaber-ShockBot.py

Copy the Python script and make sure to update the ipaddress and port number for the device running BeatSaber in the ws variable.

import websocket
import time
import datetime
import json
import RPi.GPIO as GPIO
from websocket import create_connection

# Setup GPIO as output
PIN = 22
GPIO.setmode(GPIO.BOARD)
GPIO.setup(PIN, GPIO.OUT)
GPIO.output(PIN, GPIO.LOW)

# Variable
numfail = 0
maxfail = 3
deltafail = 2
start = datetime.datetime.now()

def shock():
    print('Shock')
    GPIO.output(PIN, GPIO.HIGH)
    time.sleep(.5)
    GPIO.output(PIN, GPIO.LOW)
    self.start = datetime.datetime.now()


class OnMessage():
    def __init__(self):
        # Variable
        self.numfail = 0
        self.maxfail = 2
        self.deltafail = 2
        self.start = datetime.datetime.now()

    def __call__(self, ws, message):
        evtjson = json.loads(message)
        evt = evtjson["event"]
        if(evt == "noteMissed" or evt == "bombHit"):
            self.end = datetime.datetime.now()
            delta = self.end - self.start
            if (delta.seconds < self.deltafail and numfail > self.maxfail):
                self.start = datetime.datetime.now()
            elif (delta.seconds < self.deltafail and numfail < self.maxfail):
                self.start = datetime.datetime.now()
                shock()
                self.numfail = numfail + 1
            elif (delta.seconds > deltafail and numfail > maxfail):
                self.start = datetime.datetime.now()
                shock()
                self.numfail = 0
                self.numfail = numfail + 1
            elif (delta.seconds > self.deltafail and numfail < self.maxfail):
                self.start = datetime.datetime.now()
                shock()
                self.numfail = 0
                self.numfail = numfail + 1
            else:
                print('Error processing Event: ' + evt)
        elif(evt == "menu"):
            print ("In Menu, Waiting for Song to Start")

on_message = OnMessage()

def on_error(ws, error):
    print("Error")

def on_close(ws):
    print("### closed ###")

def on_open(ws):
    print ("Opened Session")

websocket.enableTrace(True)
ws = websocket.WebSocketApp("ws://192.168.1.39:6557/socket/", on_message = on_message, on_error = on_error, on_close = on_close)
ws.on_open = on_open
ws.run_forever()

Save and exit. Once all setup you can run this using the following command.

sudo python BeatSaber-ShockBot.py

You can get this script to autostart using PM2. You can use this guide to do it.
